電界効果トランジスタ( FET ) 選択表
fig 形式MakerPdmax(W)Id max(A)Vd(V)Rds(Ω)コンプリペア,備考-
2SJ130-E RENESAS 20W -1A 300Vds Rds=8.5Ω DPAC GDS

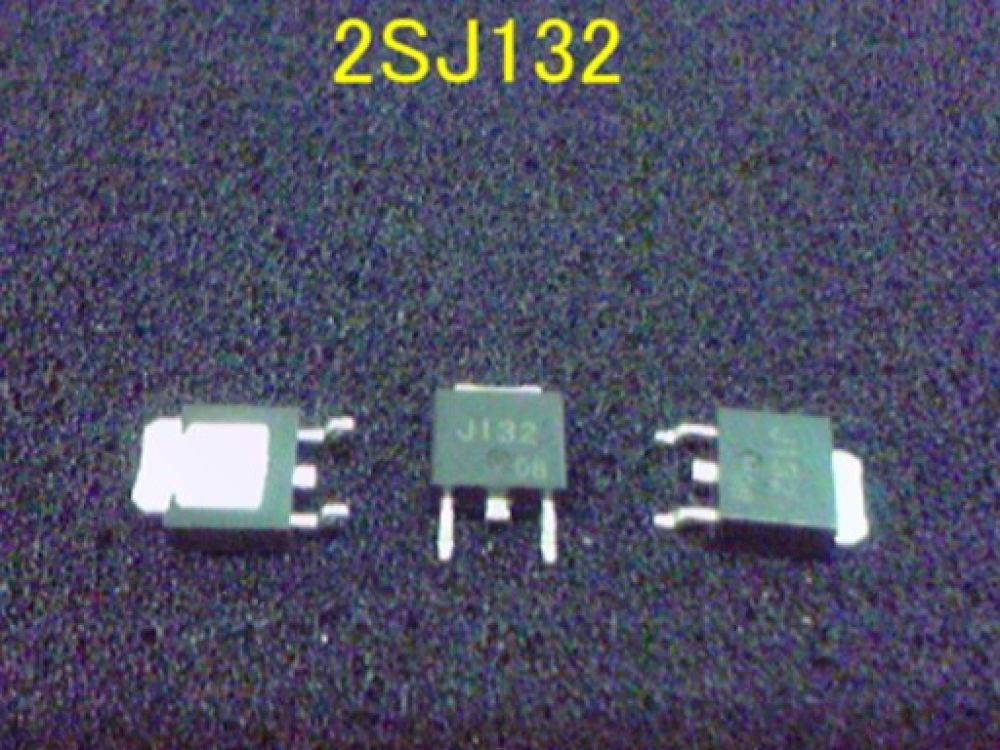

2SJ132RUNESAS20W-2A30Vds0.4-
2SJ160-ERENESAS100W-7A120Vds-TO-3P,GSD
2SK1056とコンプリ
2SJ161-ERENESAS100W-7A140Vds-TO-3P,GSD
2SK1057とコンプリ
2SJ162-ERENESAS100W-7A160Vds-TO-3P,GSD
2SK1058とコンプリ
2SJ201-YToshiba160W-12A200Vds-コンプリ2SK1530-Y廃止品
2SJ247-Eルネサス40W-8A100Vds0.25ΩTO-220AB , GDSD
2SJ293-Eルネサス30W15A60Vds0.075ΩTO-220AB , GDSD
2SJ351-Eルネサス100W-8A180Vds-TO-3P , GSD
2SK2220-Eとコンプリ
2SJ352-Eルネサス100W-8A200Vds-TO-3P , GSD
2SK2221-Eとコンプリ
2SJ555-Eルネサス125W-60A60Vds-TO-3P , GSD
fig 形式MakerPdmax(W)Id max(A)Vd(V)Rds(Ω)コンプリペア,備考-
2SK30A-O TOSHIBA 100m 10m 50 - S,G,D Idss=0.60〜1.40mA
2SK30A-Y TOSHIBA 100m 10m 50 - S,G,D Idss=1.2〜3.0mA
2SK30A-GR TOSHIBA 100m 10m 50 - S,G,D Idss=2.60〜6.50mA
2SK43-1 SONY 300m 5m 30 - Idss=0.9-3.3mA
2SK43-2 SONY 300m 5m 30 - Idss=2.7-5.5mA
2SK43-3 SONY 300m 5m 30 - Idss=4.5-7.7mA
2SK43-4 SONY300m5m30-Idss=6.3-9.9mA
2SK118 TOSHIBA 100m 10m 50 - -
2SK130 NEC - - - - -
2SK192ATOSHIBA200m10m18--
2SK208TOSHIBA100m10m50V-面実装
2SK213-ERENESAS30W0.5A140Vds-TO220/SWREG,DDC,-GSD 2SJ76-E廃止品
2SK241-ETOSHIBA200mW30mA20Vds- 廃止品
2SK319HITACHI50W5A400Vds1.1ΩSWREG,DDC,-GDS
2SK366TOSHIBA200mW30mA40Vds-SWREG,DDC,-GDS

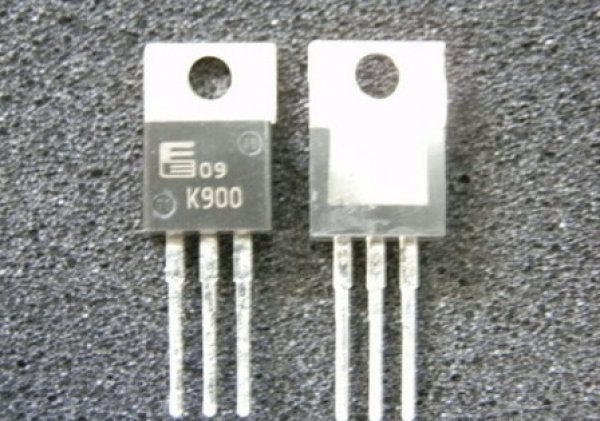

2SK900富士電機80W12A250Vds0.25ΩUPS、PA、DDC、GDS
2SK904富士電機80W3A800VdsRds=4ΩUPS、SWREG、DDC、GDS
2SK905富士電機125W45A50VdsRds=0.03Ωモータ制御、PA、GDS
2SK975-Eルネサス0.9W1.5A60VdsRds=0.40ΩSDG_TO-92
fig 形式MakerPdmax(W)Id max(A)Vd(V)Rds(Ω)コンプリペア,備考-
2SK1056-Eルネサス100W7A120Vds-GSD
2SK1057-Eルネサス100W7A140Vds-GSD
2SK1058-Eルネサス100W7A160Vds-GSD
2SK1084-01富士電機20W20A100VdsRds=0.50ΩPA、モーター制御、GDS
2SK1152L-Eルネサス20W1.5A500VdsRds=4.0ΩGSD-D(FIN) DPACK(L)
2SK1165-Eルネサス100W12A450VdsRds=0.40ΩGDS TO-3P
2SK1168HITACHI100W15A500Vds--
2SK1300-Eルネサス40W10A100VdsRds=0.20ΩGDS TO-220
2SK1317-Eルネサス100W2.5A1500VdsRds=9Ω(12ΩMAX)GDS TO-3P
2SK1340-Eルネサス100W5A900VdsRds=3.0ΩGDS TO-3P
2SK1342-Eルネサス100W8A900VdsRds=1.2ΩGDS TO-3P
2SK1381TOSHIBA150W50A100Vds0.032-
2SK1518-Eルネサス120W20A500VdsRds=0.22ΩGDS TO-3P
2SK1521-Eルネサス250W50A450Vds-GDS TO-3PL
2SK1530TOSHIBA150W12A200Vds0.032+コンプリ2SJ201
2SK1637-Eルネサス35W4A600VdsRds=2.4ΩGDS TO-220FM
2SK1934-Eルネサス150W8A1000VdsRds=1.6ΩGDS TO-3P
2SK1938-01R富士電機100W18A500Vds0.35ΩSWREG、UPS、DDC、GDS
2SK1986-01富士電機80W4A1000Vds3.6ΩSWREG、UPS、DDC、GDS完売
2SK2148-01富士電機80W12A600Vds0.75ΩSWREG、UPS、DDC、GDS
2SK2220-Eルネサス100W8A180Vds-GSD,TO-3P
2SJ351とコンプリ
2SK2221-Eルネサス100W8A200Vds-GSD,TO-3P
2SJ352とコンプリ
2SK2698(F)TOSHIBA150W15A500Vds0.40ΩSWREG、DDC、GDS
2SK2796L-Eルネサス20W5A60VdsRds=0.12ΩDPACK(L) GDS-D(FIN)
2SK2879-01富士電機150W20A500Vds0.38ΩSWREG、UPS、DDC、GDS
2SK3209L-Eルネサス35W25A150VdsRds=0.045ΩTO-220FM GDS
2SK3298-AZRENESAS40W7.5A600Vds0.75ΩPSW、GDS
2SK3936(Q)Toshiba150W23A500Vds0.2ΩGDS
2N7000VISHAY400mW115mA60Vds/40vgs-N-Channel Enhancement Mode FET
IRF8010IRF260W80A100Vds15mΩg,d,s/N-CHANEL
UPA1522HNEC28W
(7W/unitX4)
2A
unitx4
60Vds/20Vgs-コンプリペア,備考
